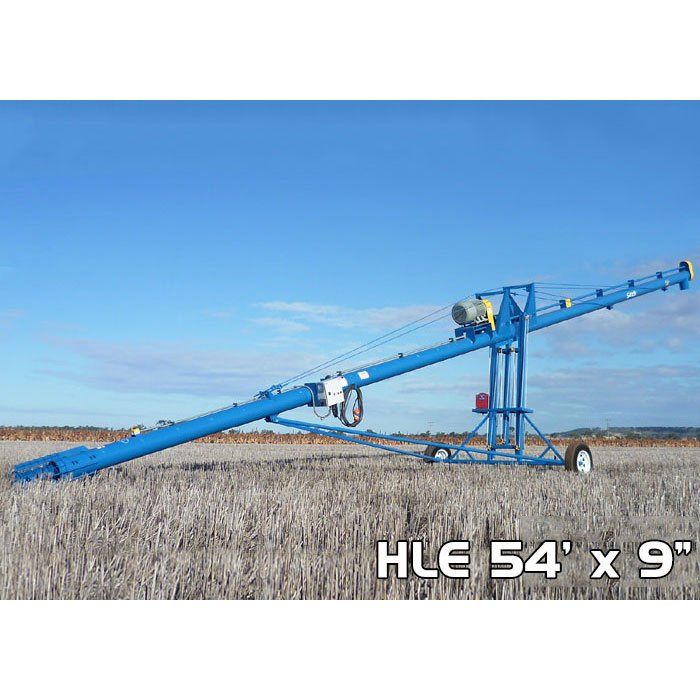

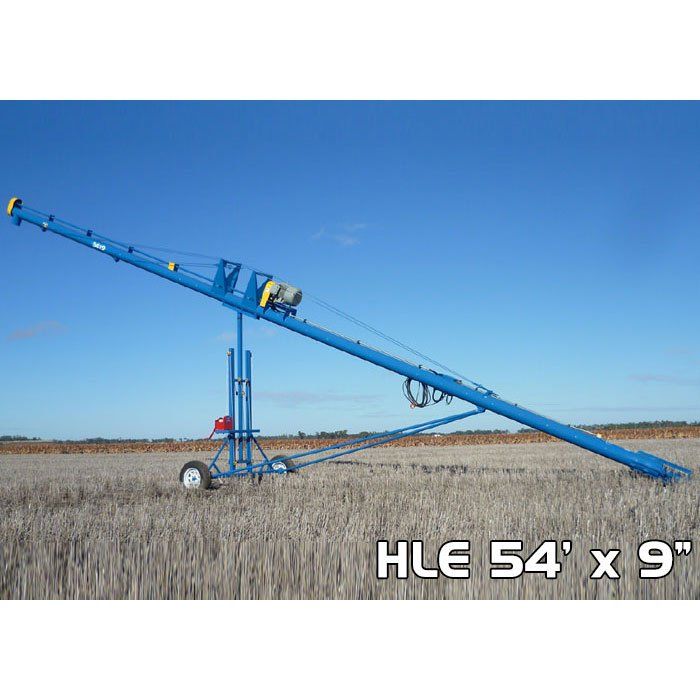

HLE Augers - Hi-Lift Electric
Our full range of augers receive the same dedication and commitment to quality as the existing Finch range of products, ensuring the auger exceeds the expectations of a traditional auger.
Featuring a 4 pole electric 3 phase motor, accessible starter box with forward/reverse and braked hand winch lift, the auger meets the requirements simply and cost effectively.

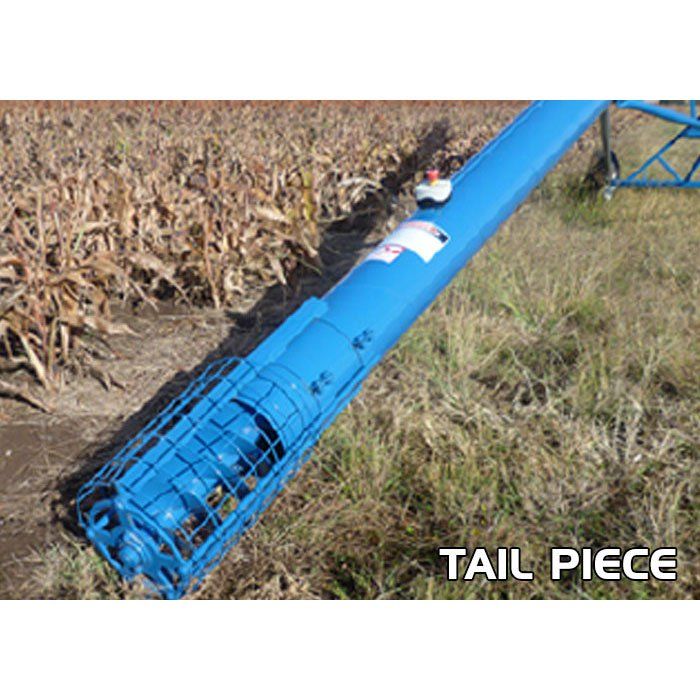

Traditional tailpiece allows this auger to utilize existing “under silo” hoppers, as well as in-loading silos with the supplied poly hopper
- Built for Adaptability
- 3mm Welded Barrel
- Heavy Wall Undercarriage

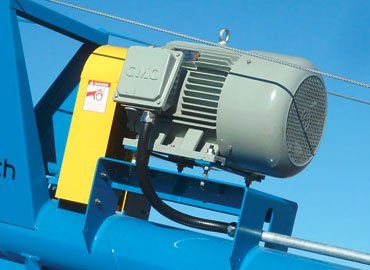

- Strong Electric Motor
- Safety Stop Switch
- Head Driven
- Interchangable Hoppers
Standard Features
- 3mm spiral welded barrel

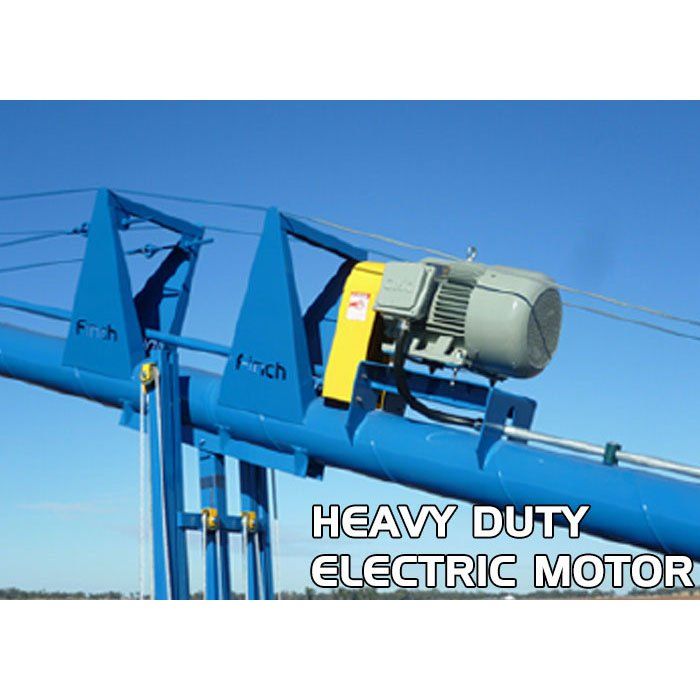

- 4 pole mid mount electric motor
- Star Delta starter
- Forward/Reverse switch
- Amp meter fitted
- Certified steel encased wiring
- 15m lead with plug
- 60-2 chain & sprockets
- 1 piece spiral with continuous flight
- New 185/14 front wheels and tyres
- Telescopic mast lift mechanism
- Safety braked hand winch
- Lift range 15° – 35°
- Strap on poly hopper

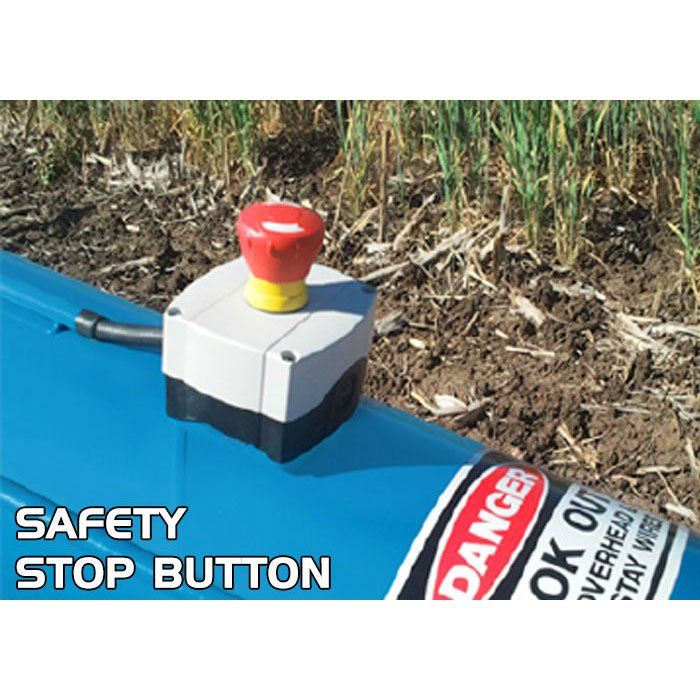

- Emergency stop button
Optional Add-ons

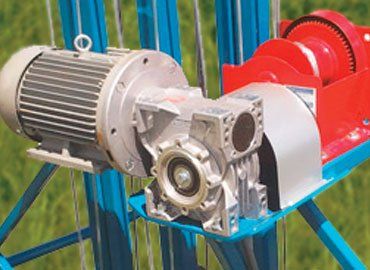

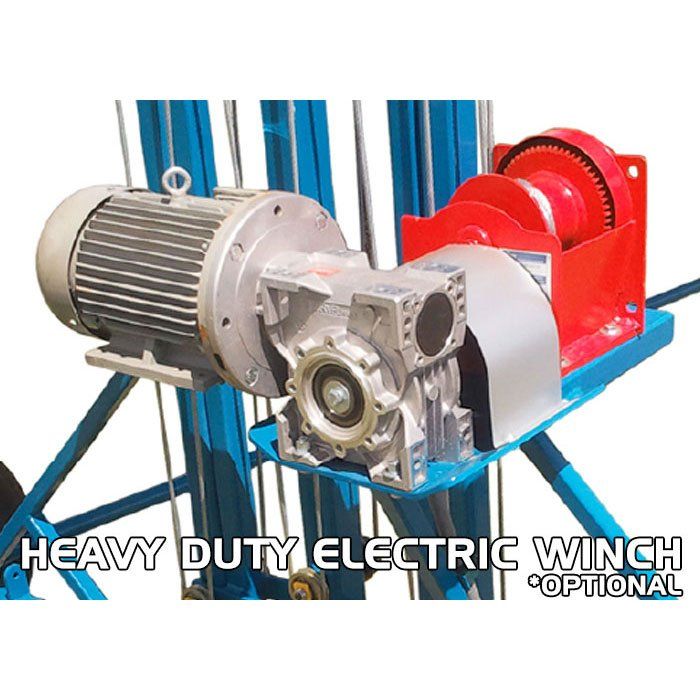

- Electric Winch

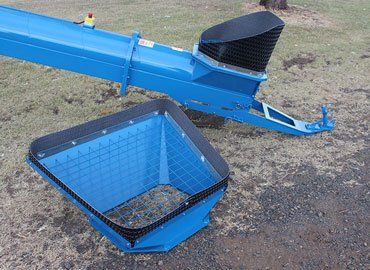

- Steel Hopper
- Poly Hopper
Specifications
| Barrel Length | Barrel Diameter | Motor kW / Plug Size | Lift Height @ 35° |
|---|---|---|---|
| 40ft | 7.5 inch | 11kW - 20 Amp | 7.0m |
| 47ft | 7.5 inch | 11kW - 20 Amp | 8.2m |
| 54ft | 7.5 inch | 11kW - 20 Amp | 9.4m |
| 60ft | 7.5 inch | 15kW - 32 Amp | 10.5m |
| 40ft | 9 inch | 11kW - 20 Amp | 7.0m |
| 47ft | 9 inch | 15Kw - 32 Amp | 8.2m |
| 54ft | 9 inch | 18.5kW - 32 Amp | 9.4m |
| 60ft | 9 inch | 18.5kW - 32 Amp | 10.5m |
| 40ft | 11 inch | 22kW - 50 Amp | 7.0m |
| 47ft | 11 inch | 22kW - 50 Amp | 8.2m |
| 54ft | 11 inch | 30kW - Subject to Power Source | 9.4m |
| 60ft | 11 inch | 37kW - Subject to Power Source | 10.5m |
