HDS Augers

High capacity, low maintenance, reliability.


Our full range of augers receive the same dedication and commitment to quality as the existing Finch range of products, ensuring they exceed the expectations of a traditional auger.

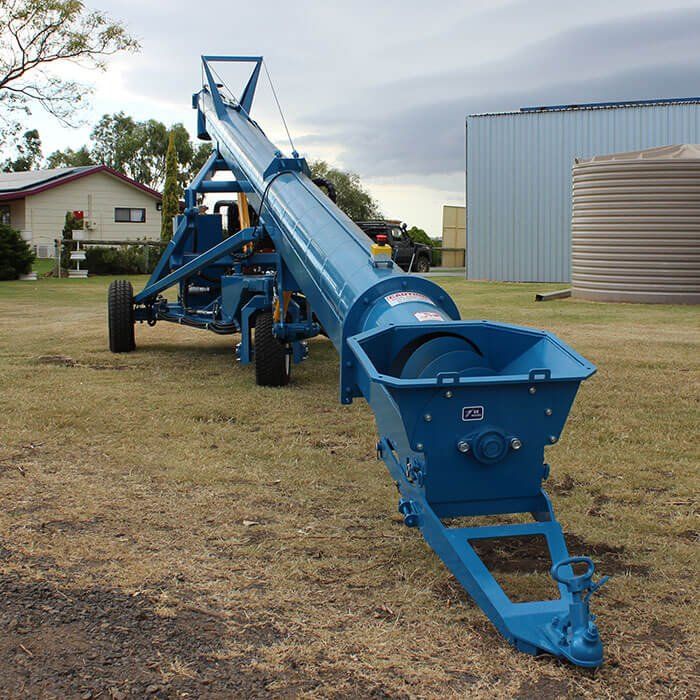

The HDS auger is the most powerful in the auger range. Featuring the durable John Deere 4045 diesel engine, tandem hydraulic gear pumps and direct mounted Geroler hydraulic motor, the auger is more than capable of maintaining performance without compromising dependability.


A strong 3mm spiral-welded barrel, wide wheel centres and low centre of gravity ensures stability even when the auger is at its maximum incline.

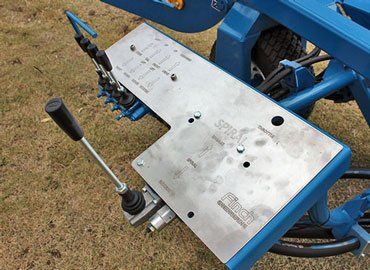

Complete fingertip control of the dual front wheel drive, front/rear lift, and dual rear wheel steer guarantees precision movements navigating up to a silo.


Steer wheel to hopper clearance of 4 metres allows the auger to be used as both an in-load and an outload auger.


  • Built for Adaptability
  • 3mm Welded Barrel

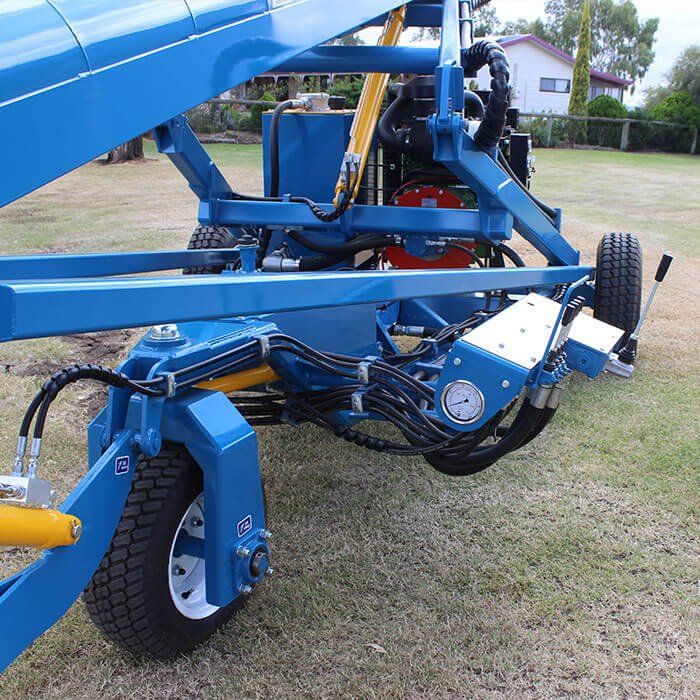

  • Heavy Wall Undercarriage
  • Diesel Engine
  • Direct Drive Gear Pump

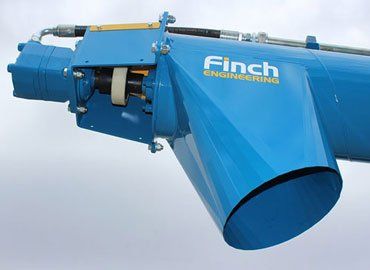

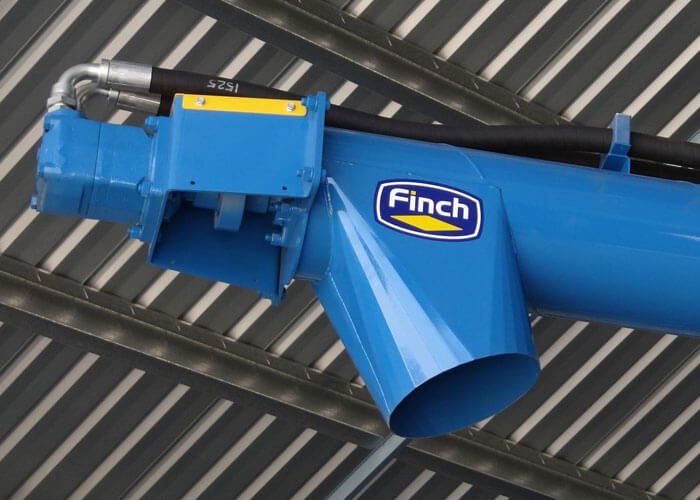

  • Head Mounted Drive Motor

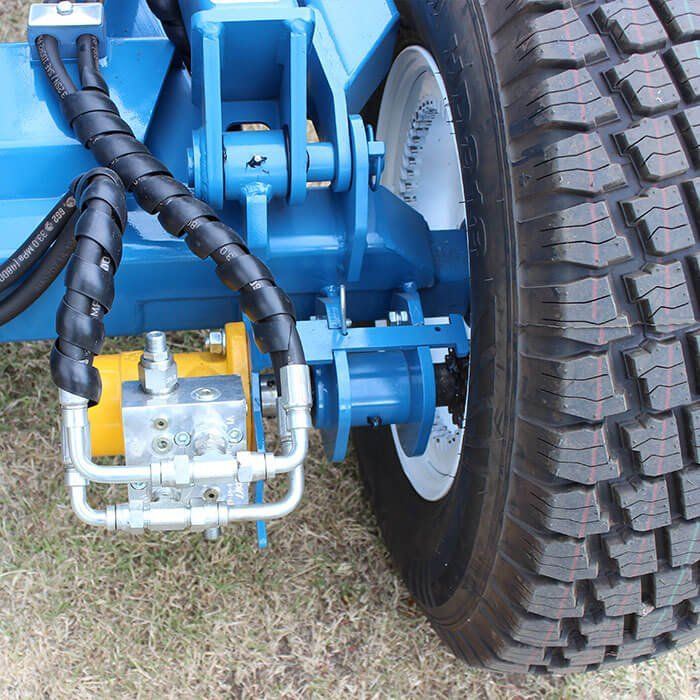

  • Dual Front Wheel Drive

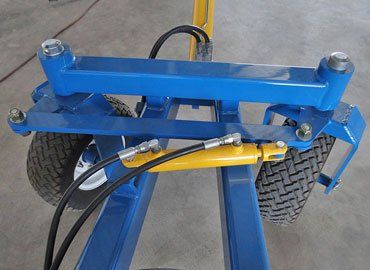

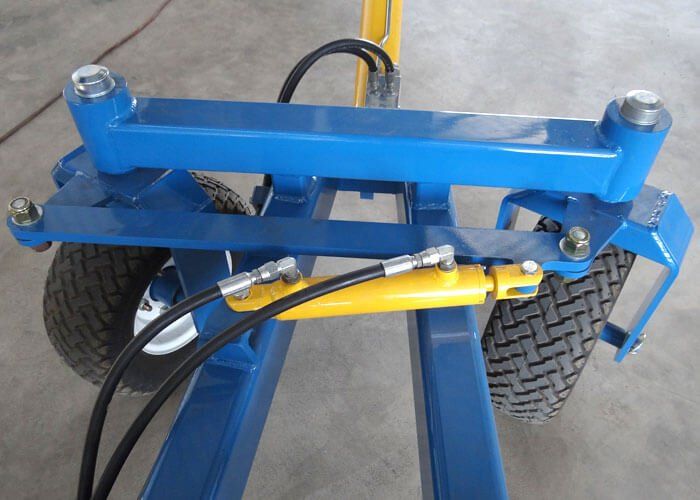

  • Hydraulic Steering
  • Interchangable Hoppers

Standard Features

  • 3mm spiral welded barrel

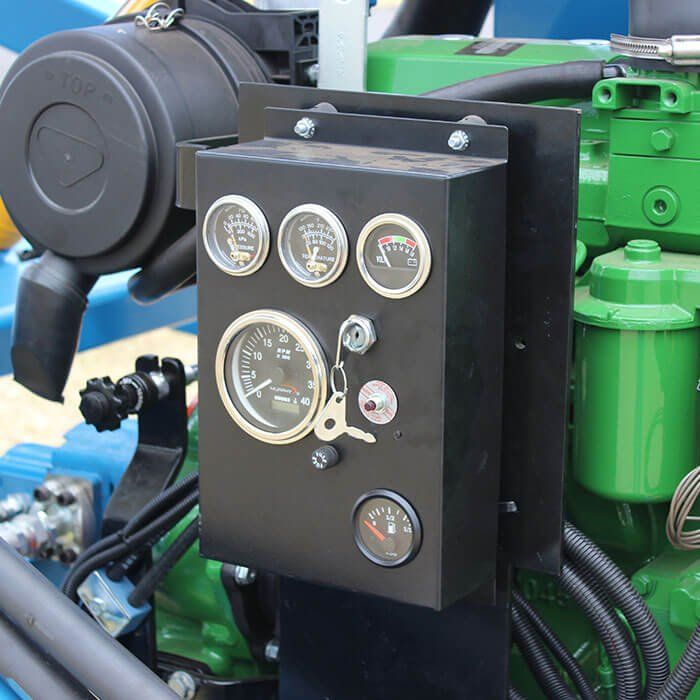

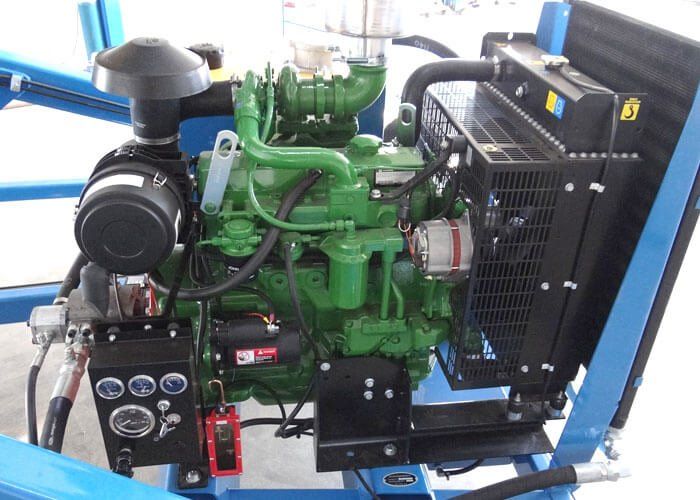

  • 4045 John Deere diesel engine
  • Large fuel tank with gauge
  • Tandem hydraulic pumps mounted direct to engine
  • Large oil tank with level/temp gauge
  • Suction and return oil filters
  • Hydraulic motor coupled direct
    to spiral with “flexilock” couplings
  • Large pressure gauge visible from hopper

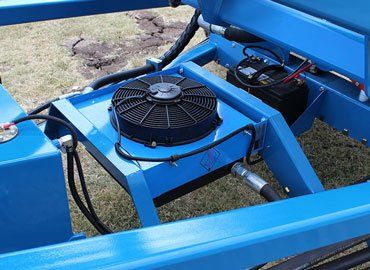

  • Oil cooler
  • Dual front wheel drive
  • New wheels & tires
  • Solid dual steer wheels
  • LED work lights

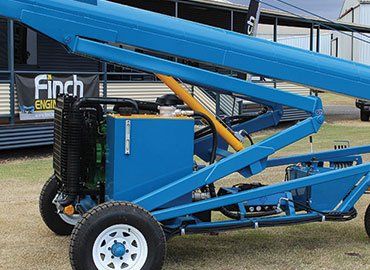

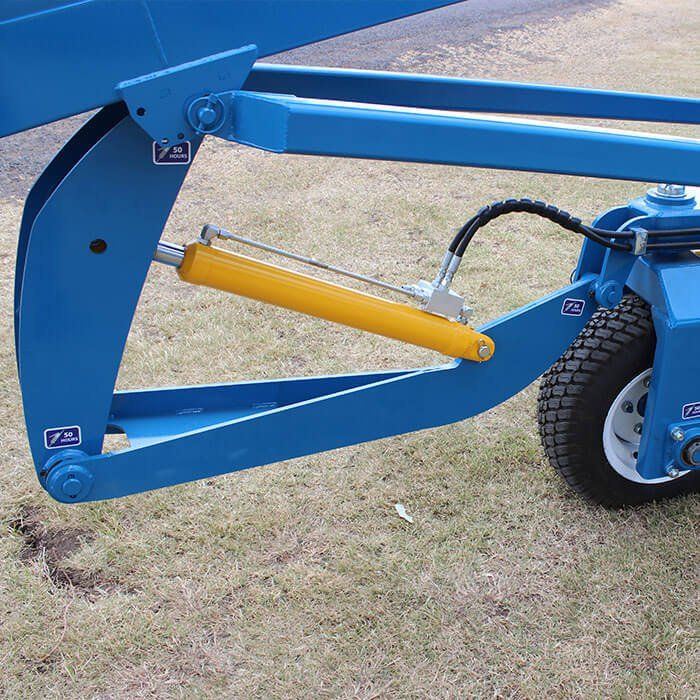

  • Scissor lift mechanism
  • Lift range 15° – 35°

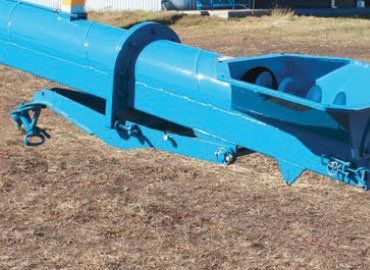

  • Foldaway tow hitch suit 50mm ball
  • Fixed hopper with bearing mounted outside

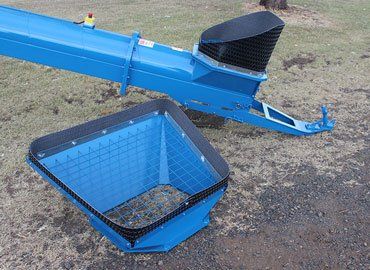

  • Interchangeable Truck/Silo hoppers

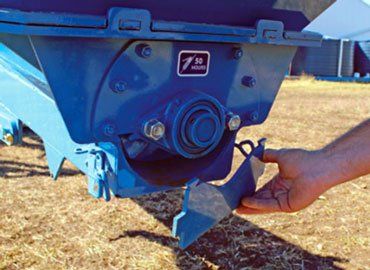

  • Removable cleanout door
  • 2Pak automotive paint finish

Optional Add-ons

Specifications


Barrel Length Barrel Diameter Engine / HP / Drive wheels Lift Height @ 35°
60ft 11 inch John Deere - 125Hp - Dual Front Wheel 10.0m
66ft 11 inch John Deere - 125Hp - Dual Front Wheel 11.0m
72ft 11 inch John Deere - 125Hp - Dual Front Wheel 12.0m
81ft 11 inch John Deere - 125Hp - Dual Front Wheel 13.5m

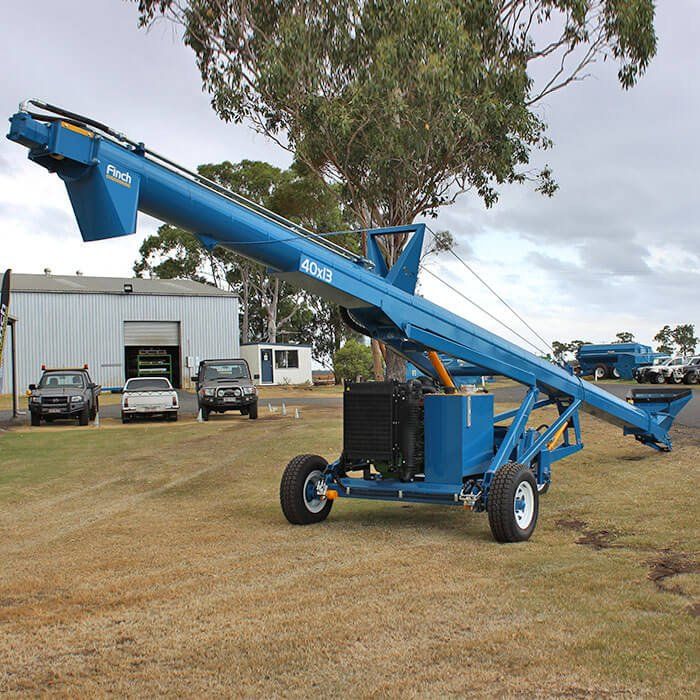

40ft 13 inch John Deere - 85Hp - Dual Front Wheel 6.5m
47ft 13 inch John Deere - 85Hp - Dual Front Wheel 7.7m
54ft 13 inch John Deere - 125Hp - Dual Front Wheel 8.9m
